Hydraulics

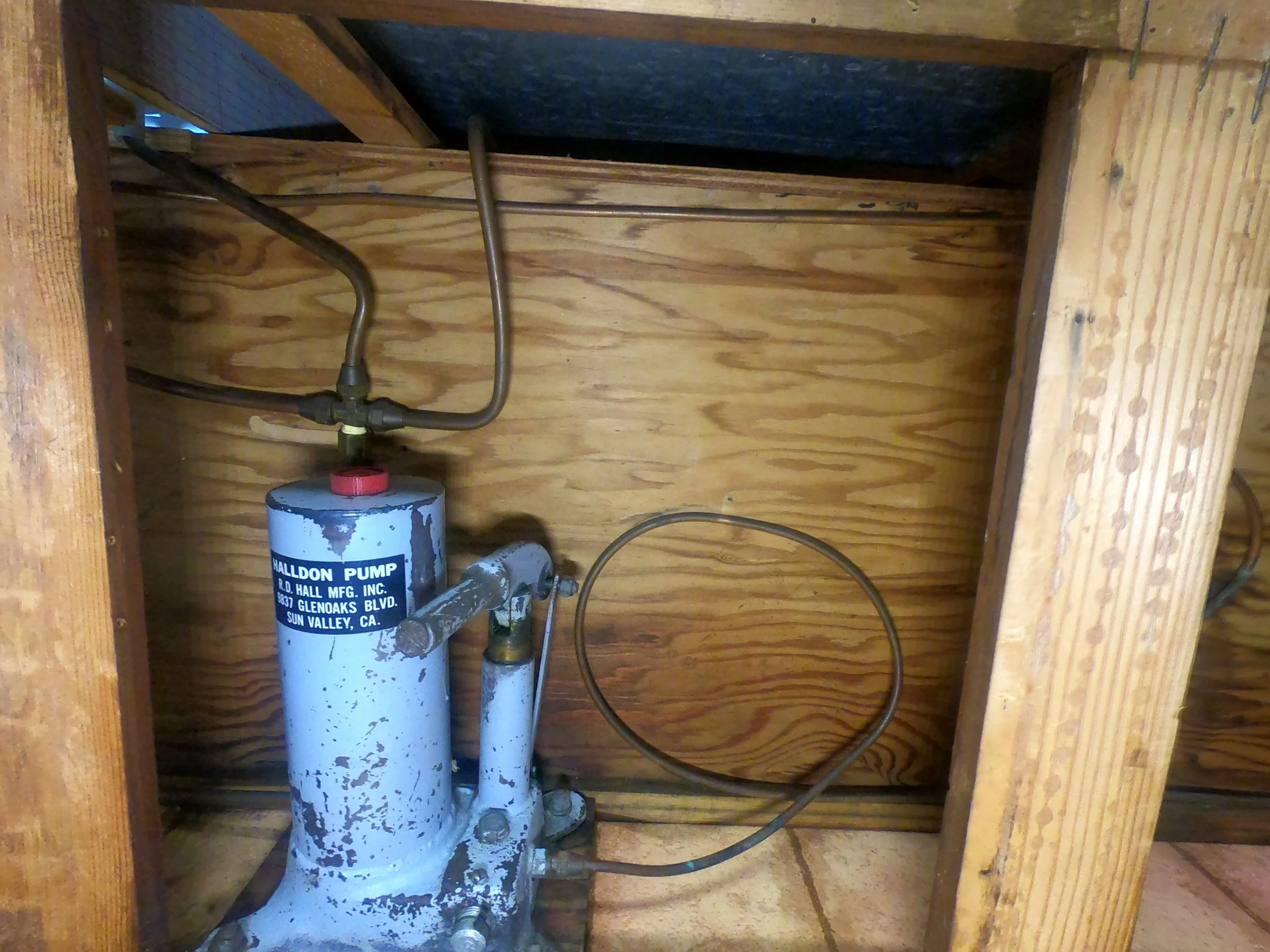

Drivers side rear hydraulic area cleaned up and ready for valve 317

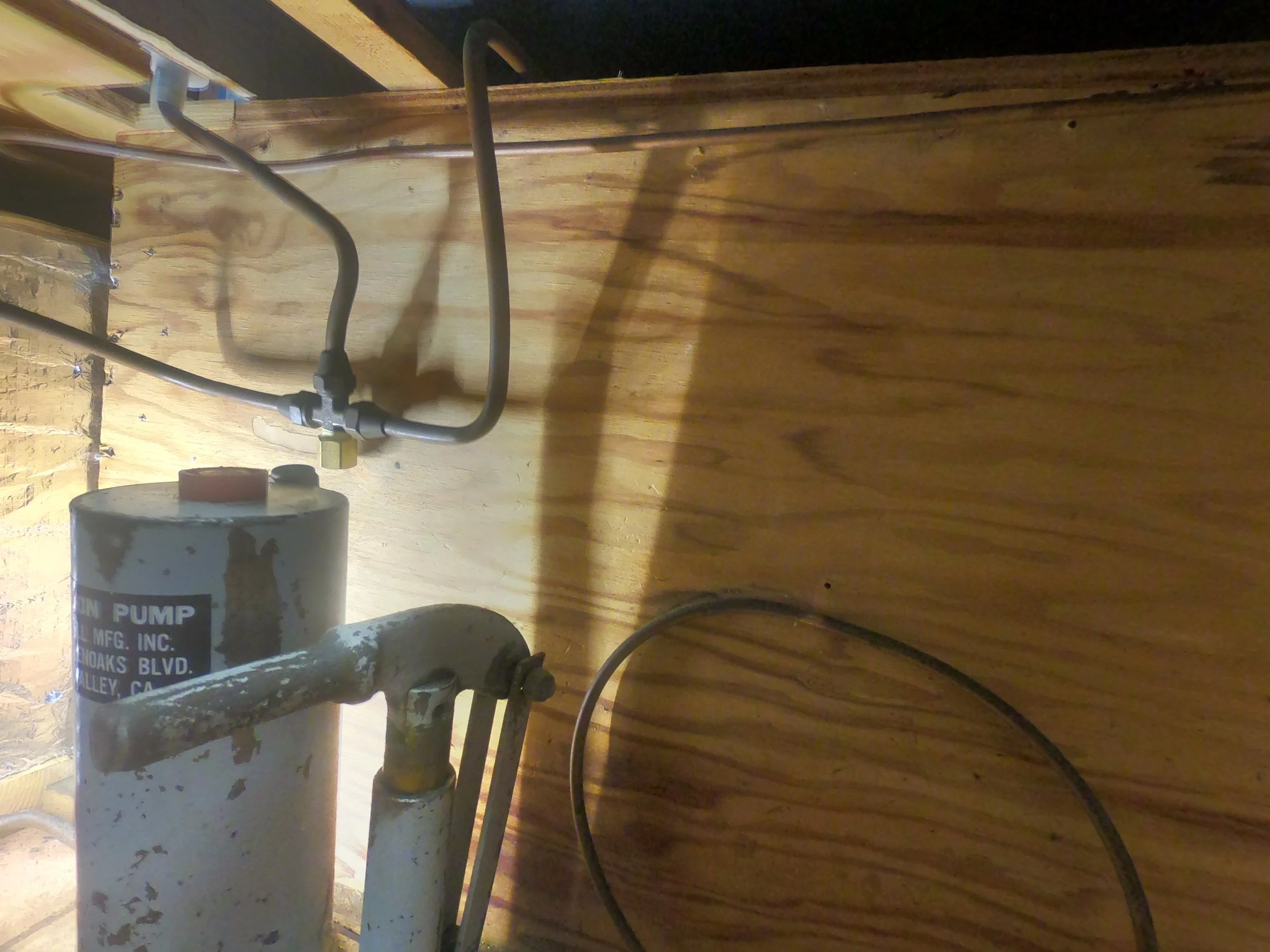

Another angle 318
Oven to be removed for a 2 burner stove top 319

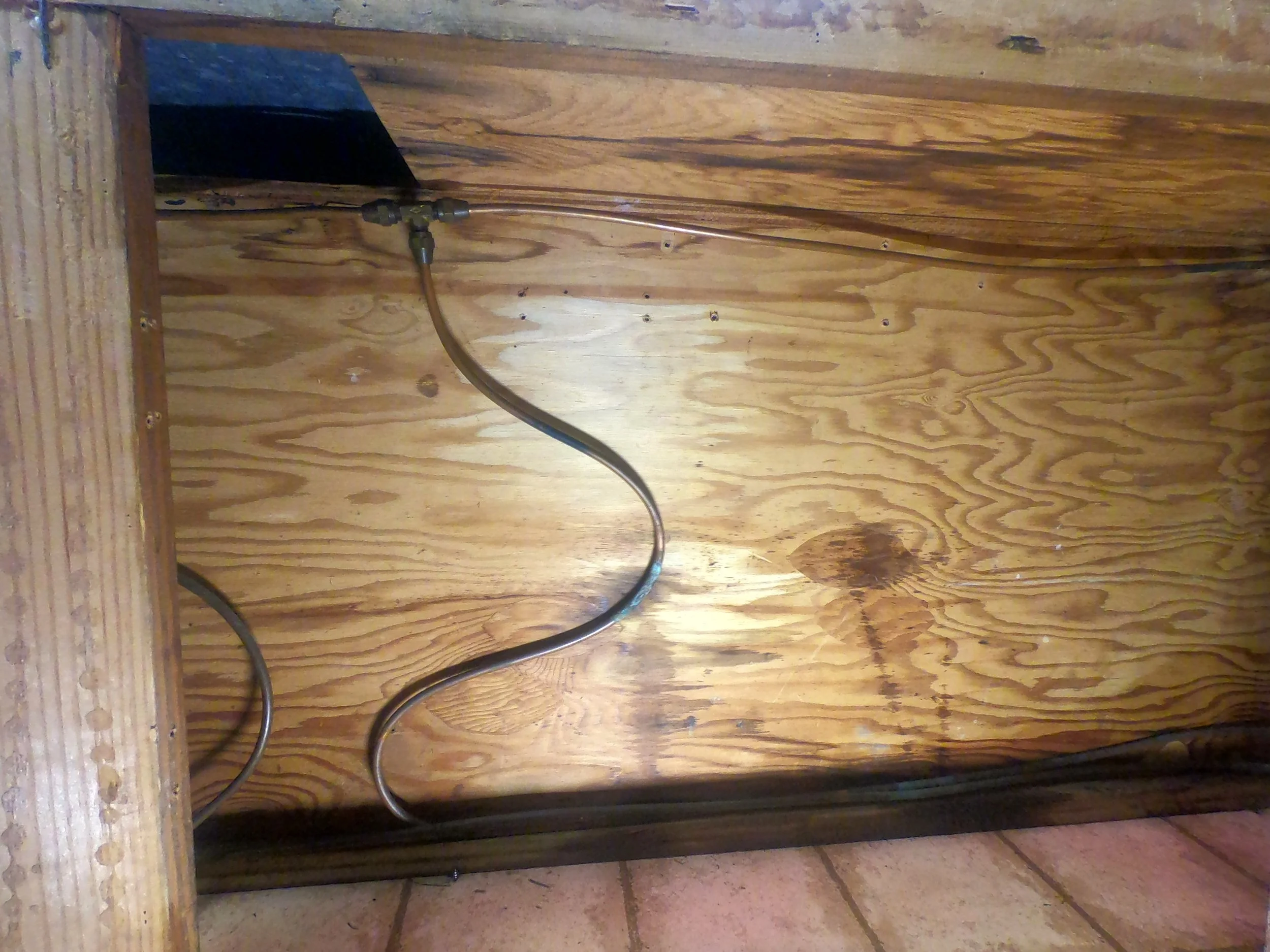

Drivers side hydraulic areas cleaned up and ready for valves 320

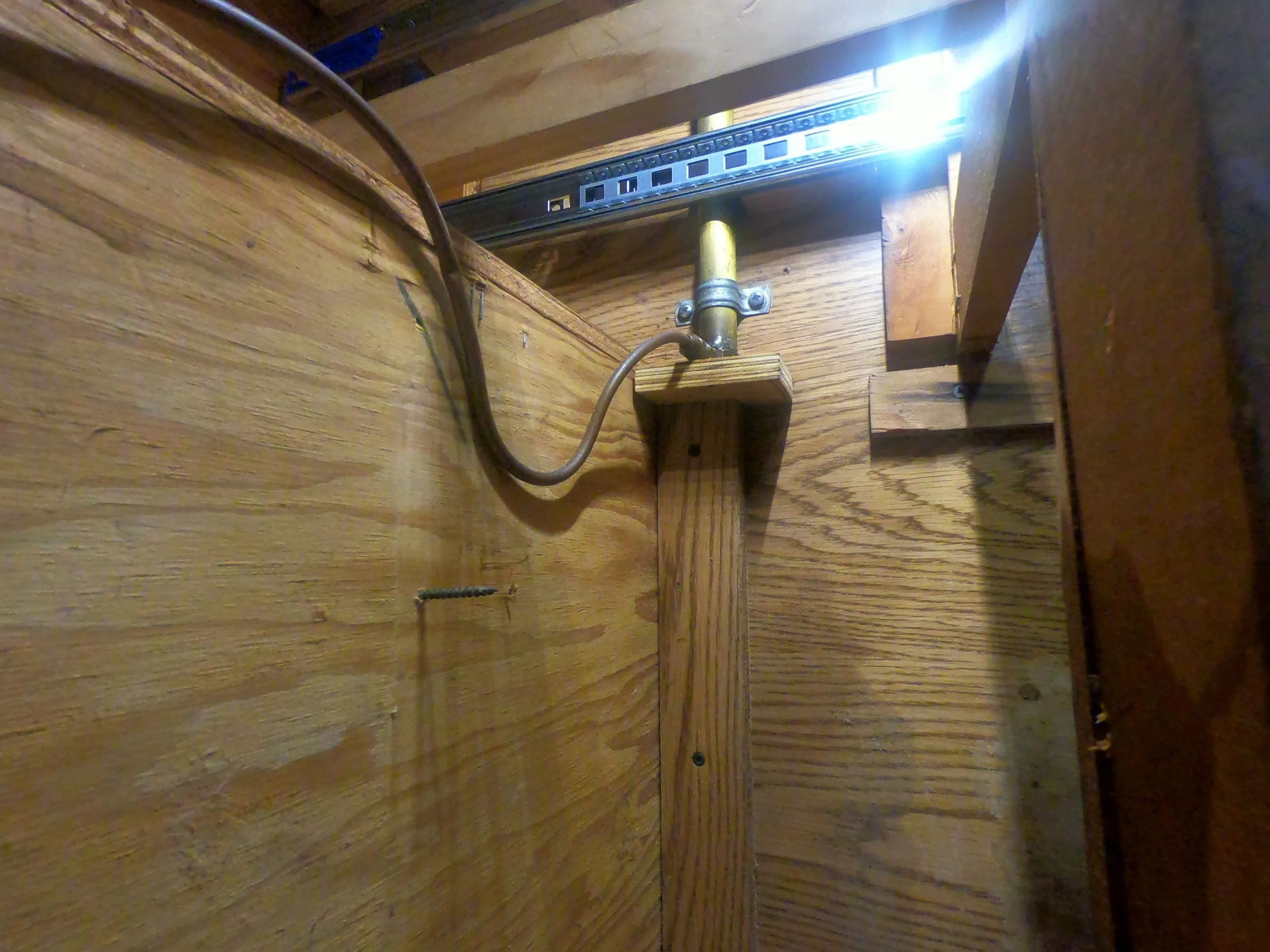

Drivers side front hydraulic area cleaned up and ready for valve - sliding drawer rails starting to go in. In every one of the four corners the pistons were at different heights from the floor 321

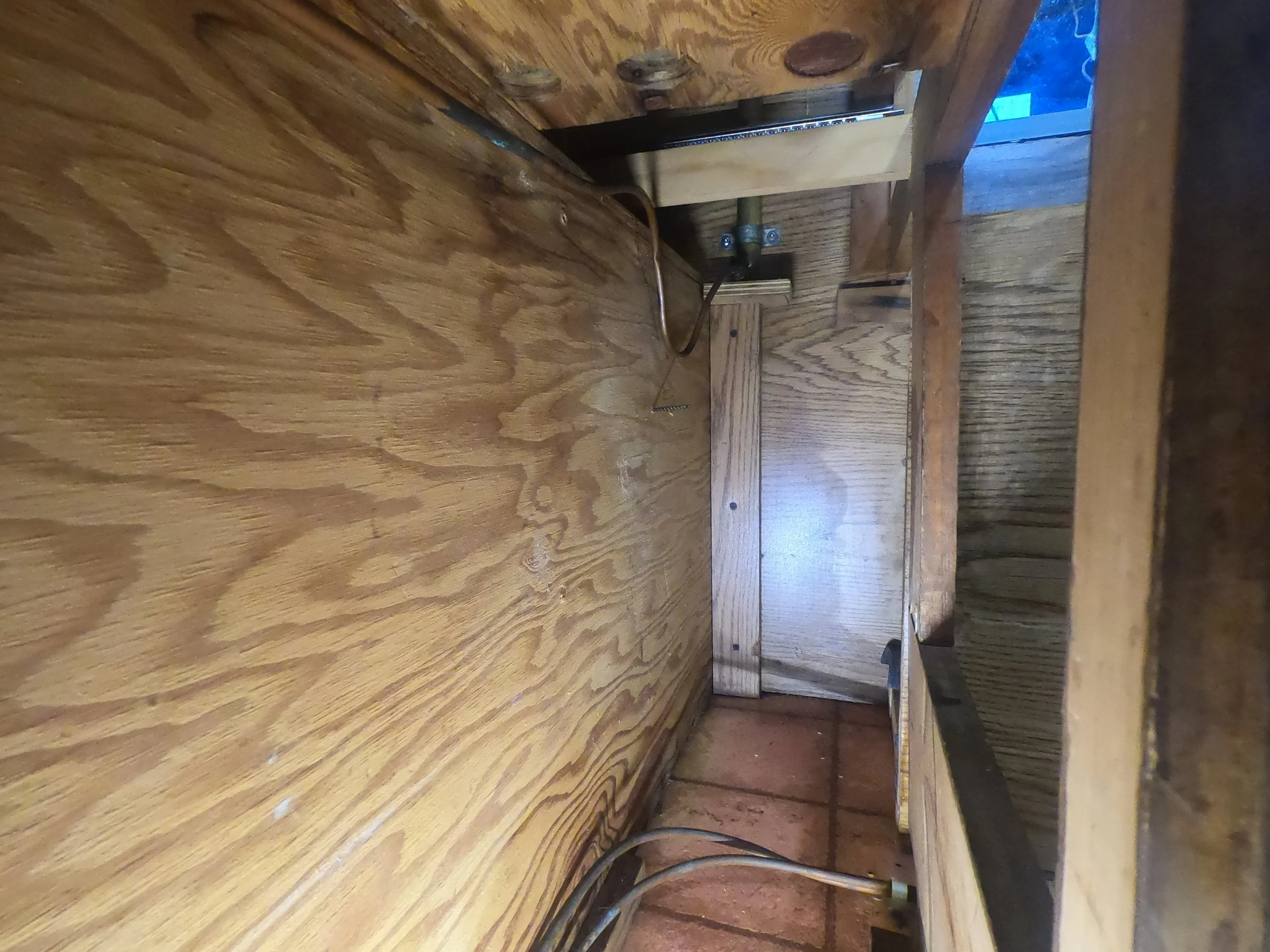

Passenger side front hydraulic area cleaned up and ready for valve - Water Tank inlet lines will be going into the tank at the forward wall 322
Passenger side frot hydraulic piston area posed a challenge due to the lid of the water tank area 323
Upper piston hardware 324
Upper piston mounting bracket generic 325
Upper piston mounting bracket generic 326

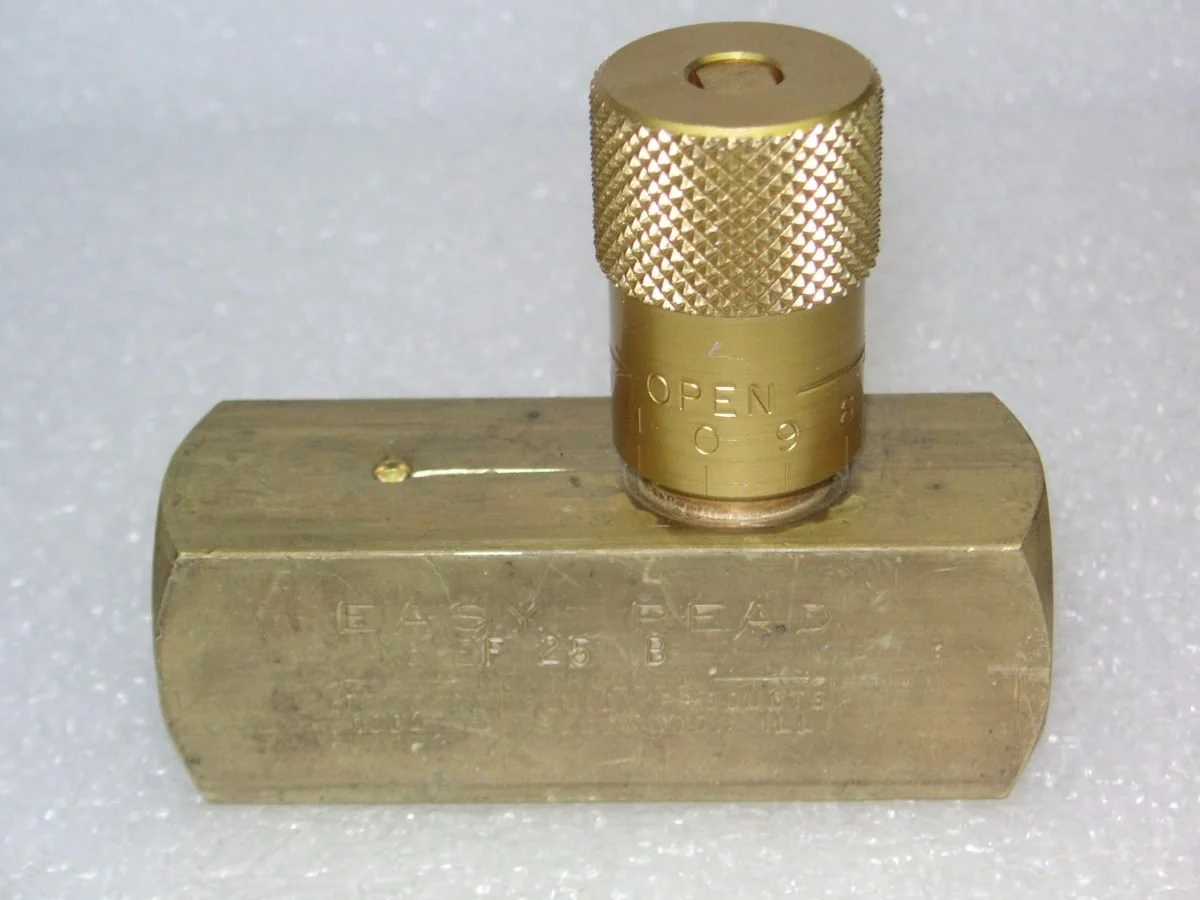

Deltrol-Easy-Read 327
Deltrol-Easy-Read 328

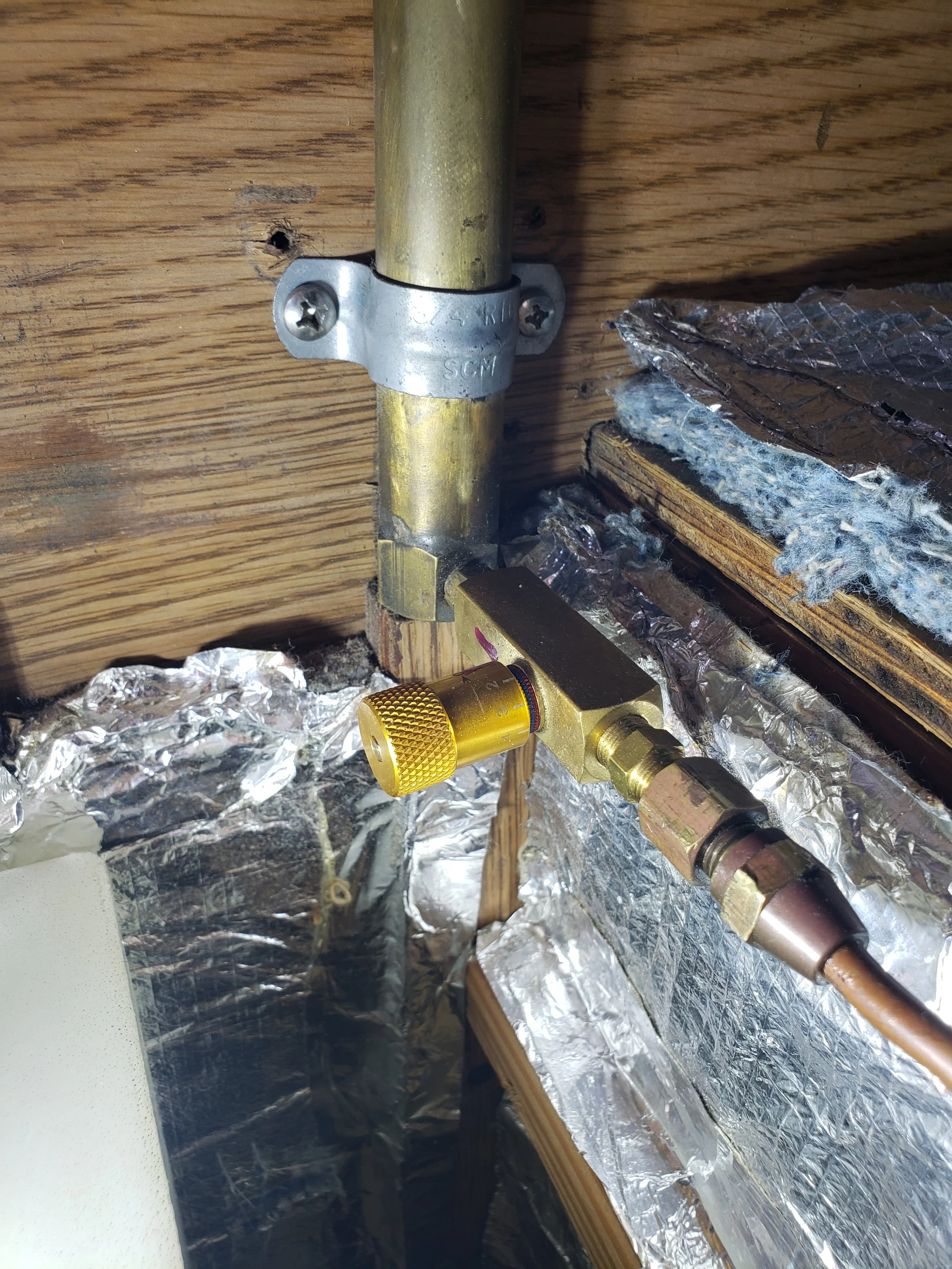

Passenger side rear valve installed in storage compartment with Diesel Heater distribution ducting 329
Passenger side front valve next to fresh water tank installed 330

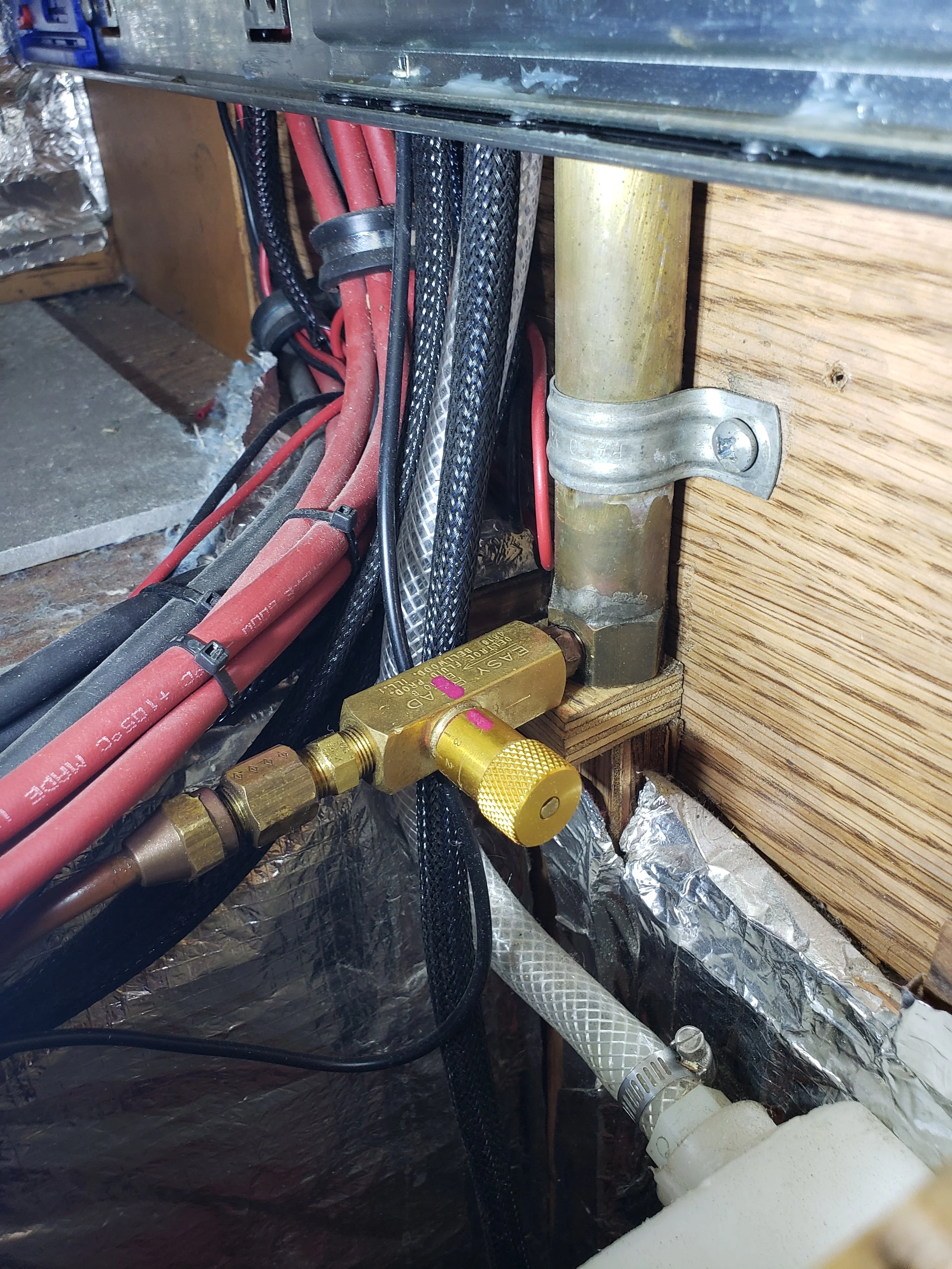

Drivers side front valve installed next to lower sliding drawer (removed for picture) 331
Drivers side rear valve installed just forward of Hydraulic pump and aft of the T 332
Adding controllable (in 1 direction) valves to try and work out getting the upper half to raise and lower in a balanced fashion.
Here’s a link to how these valves work : https://www.youtube.com/watch?v=iFlPta8vaIk
